Cressi T10 SC Cromo and Galaxy Adjustable (Atelier) | DIN

HX890100
Cressi
Call for Price

Cressi Atelier Product
Cressi have created the Atelier Line to help dive shops which don't have an online presence.
Cressi's distribution regulations means we're not allowed to publish the RRP online.

But we can still sell them in our Dive Shop.
If you're interested in buying this product, please drop into our dive shop in Rye, Victoria, and we'll be happy to assist you!



Ideal for seasoned or professional divers who need extremely high-performing equipment that is both simple and resistant, without any of the usual accessories that may get damaged.

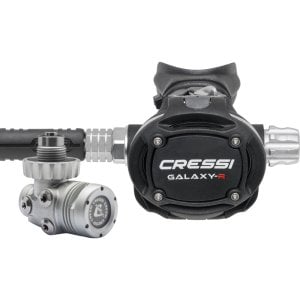

TheCressi T10-SC Cromo / Galaxy Adjustable Regulator delivers performance, ergonomic reliability, and ease of maintenance, making this regulator a product for true diving professionals. Instructors, guides, dive operators, and researchers will find the answer they need in the Cressi Galaxy Adjustable Regulator.

Cressi’s T10-SC Cromo Master Regulator Set is technically identical to the T10-SC Master but with a pleasing and durable satin chrome finish on the first stage and a brushed stainless steel cap on the second stage.

Certification EN250/2014 for Cold Water:
The Cressi T10 Seal Chamber Cromo 1st stage is environmentally sealed, protecting it against icing in cold water and against contamination from particulate matter in silty conditions. When paired with the Cressi Cromo Master Ellipse second stage, which includes an internal heat exchanger, this regulator is an excellent choice for divers exploring the most extreme cold water environments.

The Cressi T10-SC Cromo First Stage Regulator stands out from the range of Cressi balanced diaphragm regulators because the mechanism is arranged on an axis perpendicular to the axis of air entry, creating a ‘T’ shape. The advantages of this particular design include better arrangement of the hoses and less space occupied. The regulator is remarkably easy to inspect and access the mechanism to improve maintenance and calibration operations. The Cressi T10-SC uses a larger, high-efficiency conical filter. The marine brass metal body is protected on the surface by a chromed satin finish.

The balanced diaphragm, the first stage regulator, is inherently environmentally sealed. The benefit of this type of first-stage design is that none of the delicate internal parts is exposed to contaminants such as salt, sand, chlorine or pool acids. These environmental contaminants can cause corrosion and mineral deposits to form on the internal mechanism deteriorating regulator performance. A diaphragm first-stage regulator requires less maintenance than regulators that allow contaminants to enter the internal mechanism. The diaphragm of the first stage regulator forms a membrane barrier between the environment and the internal mechanism. The diaphragm membrane transmits pressure changes to the mechanism keeping the internal parts cleaner and contaminant free.

The 1st stage Cressi T10-SC is identical to the T10 but with a special seal chamber that completely isolates the diaphragm and spring from contact with water. Ideal for diving in waters rich in suspension and mineral salts, archaeological work, potholing, and diving in cold waters. The total water exclusion from the regulator’s interior, including the spring chamber, means that no ice can form inside during cold water dives. The first stage regulator has two high-pressure (HP) 7/16-inch UNF threaded ports, and 4-low pressure (LP) 3/8-inch UNF threaded ports.

The Cressi Galaxy Adjustable Second Stage Regulator has installed the exceptional and proven Cressi pneumatically balanced valve to ensure minimum inhalation effort. The knob for adjusting inhalation effort is made of a metallic material to guarantee reliability and resistance to blows and scratches. Inhalation effort can be adjusted with an easy-grip knob. The knob is designed to work even when wearing gloves and allows the diver to fine-tune the breathing resistance to meet the needs of the dive environment.

To further give the diver a custom breathing mechanism, the regulator is equipped with a venturi switch; when placed in position (-), it functions as pre-dive mode and helps prevent the regulator from free-flowing at the surface; when moved to (+) it allows the regulator its maximum performance. The second stage housing is manufactured from a noise-absorbing techno-polymer material.

The Cressi T10-SC Cromo Master Regulator Set comes with an 85.1 cm (33.5 inches) extremely lightweight and flexible 3/8-inch threaded hose. The regulator weighs 1,080 g (38.1 oz) with a hose and comes with an owner’s manual.

Cressi T10-SC Cromo / Galaxy Regulator Features:

First Stage: Cressi T10 Cromo

  • Hyper-Balanced Diaphragm Design with Watertight Chamber
  • Inherently Environmentally Sealed
  • 2 HP ports 7/16-inch UNF Thread
  • 4 LP Ports 3/8-inch UNF Thread
  • Lightweight Satin Chromed Brass Body
  • Body Coated with PVD Process
  • Self-Lubricating Internal Coating
  • Anti-Pressure Drop Pneumatics
  • High-Capacity Conical Filter in Chemically Nickel-Plated Spherical Bronze
  • Removable Nozzle in AISI 316 Steel
  • Anti-Pressure Drop Pneumatic Spring
  • “T” Shape for Better Hose Routing and Compact Profile
  • Calibration pressure: 10 bar
  • High-Efficiency Nickel-Plated Bronze Conical Filter
  • Stainless Steel Calibration Spring with Micropeening Treatment
  • Low-Friction Technopolymer Slider Shaft
  • Quantity of Air Supplied: 4500 l/min
  • Operating Pressure: 300 bar (4350 psi) DIN Version, 232 bar (3365 psi) International version
  • Weight, INT version: 720 gr
  • Weight, DIN version: 602 gr
  •

Second Stage Galaxy Features

  •  Pneumatically balanced
  • Adjustable Venturi
  • Adjustable inhalation effort
  •  Patented elliptical diaphragm
  •  Patented low-friction lever
  • Air delivery system without injector
  • Adjuster knob coated with dual OR
  • Internal heat exchanger
  • Cap opening with Cam-lock
  •  Noise-absorbing technopolymer body
  •  Removable technopolymer de­ vector
  •  Removable mechanics
  •  Weight without hose: 7.1 oz | 202 g

Combanation Performance

  • Average Cracking effort: 1.41 inwc | 3.5 mbar
  • Average breathing effort 0.6 J/l



(04/23 AG)
