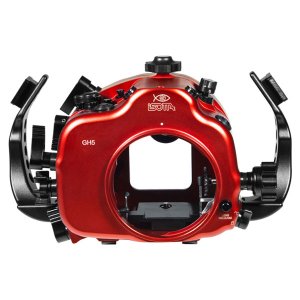

Isotta Panasonic Lumix GH5 and GH5S Underwater Housing

UWI-2469 | GH5/GH5S


The Isotta Underwater Housing for the Panasonic Lumix GH5 and Panasonic Lumix GH5S mirrorless cameras allows you to capitalise on your cameras full potential and capture amazing pictures underwater. An easy to use highly professional product has been created through techniques and innovations gained from years of experience. Easy access to all key/main camera controls, even with gloves, by means of clearly labelled lasered long life buttons.

The back door has a large window anti-scratch glass for a fine camera display and optical viewfinder view and it is entirely detached from the front body to make easier the camera fitting. The housing stands with great stability due to sturdy and wide rubber feet located on the bottom.

One Hand Open/Close
It’s very easy to open and close Panasonic Lumix DC-GH5 or Panasonic Lumix DC-GH5S, without efforts by the user thanks to the upper helicoid and the bottom centred pins. The camera is easily placed into the housing on a sliding tray that keeps the camera robustly in place.

Ports and Extension Ring
A series of ports and extension rings are available in a dedicated section. The removable port is fitted thanks to markers and a bayonet 102 mm connection to the Panasonic Lumix GH5 or Panasonic Lumix DC-GH5S housing. The interchangeable port bodies and extensions rings combine to allow the use of most of lenses on the market for maximum versatility and performance.

Lighting and Flash Trigger
Two fibre optic connections are placed in front of the built-in flash and allow the use of external strobes. It features a Manual Flash Trigger system to be used with the standard optical fiber connections.

Construction and Safety
Only the best materials are used to manufacture Isotta housings such as anodised aluminium, which is anticorodal and thermo-coated, and stainless steel. A long lasting product that requires easy and simple maintenance by the user. Dual high precision and quality O-ring seals protect and ensure a perfect and secure watertight for all movable and/or removable parts; a red alarm for humidity/water inside the housing is powered by a battery replaceable by the user. Working depth is 100 metres (330 ft). Different accessories can be fitted directly on the handles, using the Isotta top handle or the M6 and M8 threaded holes on the bottom.


  • ON/OFF of Panasonic Lumix GH5 / Panasonic Lumix DC-GH5S
  • Own camera strobe open/close
  • Ergonomic camera focusing and shutter button for an easy use with gloves
  • Lens release
  • Rear control panel
  • Upper control panel
  • All controls are available on the housing

Isotta Panasonic Lumix GH5 and GH5S Underwater Housing Features

  • Compatible with Panasonic Lumix GH5 and Panasonic Lumix DC-GH5S mirrorless cameras
  • Depth Rated to 100 metres (330 ft)
  • Anodised Machined Aluminium Housing
  • Dual O-ring Seals
  • One Hand Open/Close
  • Large Selection of Ports and Extension Ring
  • Made in Italy
  • 2 Year Warranty

Technical Specifications

  • Signature red color anodised aluminium body
  • Ergonomic side handles, adjustable (via optional accessory)
  • Two fibre optic connectors
  • Manual Flash Trigger included
  • Two M16 halls to be use optionally with electrical sync cord bulkheads and for installation of accessories, e.g. vacuum valves or monitors
  • Back housing completely separable from the front housing
  • Tray with lock for the easy fitting of the camera
  • Single-hand closing knob for back housing
  • Aluminium buttons and dials with engraved symbols identical to camera controls
  • Wide back display viewfinder glass with optical viewfinder
  • Dual O-ring seals on all buttons and removable parts
  • Moisture sensor with LED indicator and acoustic signal (replaceable battery)
  • Removable port - 102 mm bayonet
  • Ports security latch to prevent accidental opening
  • Wide, rubber covered feet for solid footing on boat floors or sea floor
  • M8 hole located on upper side of the housing for various accessories such as focus lights
  • Two M6 holes positioned on housing bottom side for different accessories such as brackets for strobes or tripods
  • External viewfinders can be mounted, INON X-2 compatible
  • Depth rated to 100 metres
  • Weight: 2,180 g
  • Size: 130 W. x 230 D. x 180 H.

What's Included

  • Housing
  • Front Lip
  • Replacement O-Ring kit
  • Silicone Grease, 10 g
  • 2 years manufacturer warranty

Spare Parts

  • AS581 - O-ring Set for Panasonic Lumix GH5 / DC-GH5S
  • AS785 - Front lid for housing
  • AS089 - T Socket

Drop Ship:
This is not a regularly stocked item in our Rye dive shop. It will be ordered for you from the manufacturer upon request and typically shipped directly from them to you. Please be aware that housings are made to order from Italy, typically resulting in a 4-6 week delay.

(08/19 LRB)
