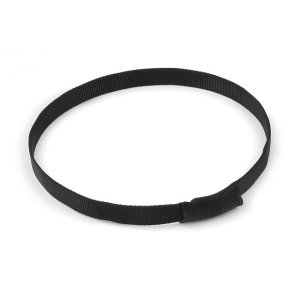

Sonar Sheathed Cylinder Clamp - X-Large

The wide band and the screw assembly of the X-Large Sonar Sheathed Cylinder Clamp are both marine grade stainless steel. The one-piece housing cannot come apart.

X-Large sheathed fits cylinders approximately {8.00 in | 20 cm} in diameter.

The sheathed cylinder clamps come complete with tubular webbing covering the band and a slightly wider piece of tubular webbing covering the screw assembly. The webbing is hot knife pre-cut to appropriate length to match the diameter of the cylinder.

Sonar Sheathed Clamp Size Comparison

• X-Small sheathed fits cylinders approximately {4.50 in | 11 cm} in diameter
  (AL-13, AL-19, Luxfer AL-30)
• Small sheathed fits cylinders approximately {5.25 in | 14 cm} in diameter
  (AL-30, AL-40, LP-45, LP-50)
• Large sheathed fits cylinders approximately {7.25 in | 18 cm} in diameter
  (LP-72, LP-80, AL-80, HP-80, LP-85, HP-100)
• X-Large sheathed fits cylinders approximately {8.00 in | 20 cm} in diameter
  (LP-95, AL-100, LP-104, HP-119, HP-130)

We offer 2 sizes of cylinder clamps, but offer 4 sizes of tubular webbing sheaths for a precise fit.

(04/19 LRB)
